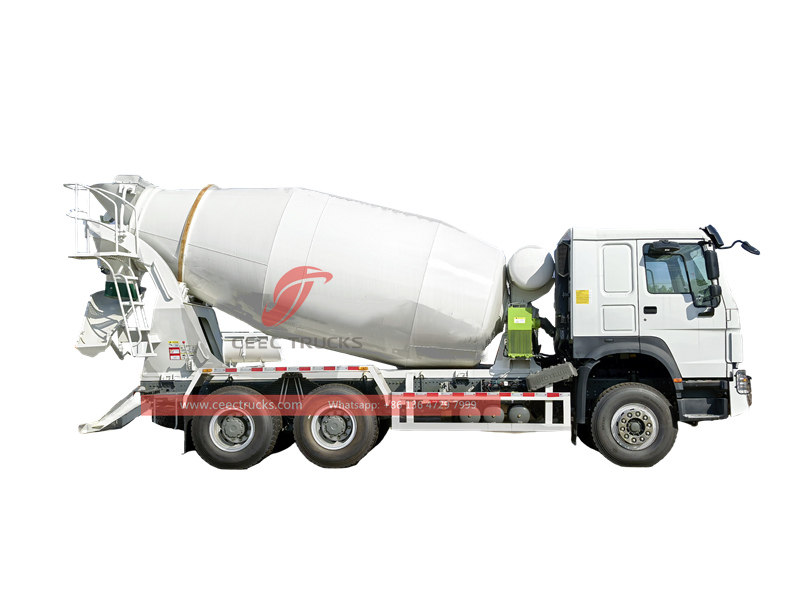

Howo heavy concrete mixer truck with direct sale

รถบรรทุกผสมคอนกรีต Howo ขนาด 10 ลูกบาศก์เมตร สำหรับประเทศเอธิโอเปีย

HOWO heavy concrete mixer truck is that integrates advanced technology and practical performance, fully demonstrating the excellence of C EEC trucks group in the field of heavy duty commercial vehicles. T he vehicle is equipped with an engine model WP10.340E22 , which is a 9.726 L inline 6 cylinder diesel engine. It adopts advanced technologies such as high pressure common rail, turbocharged intercooler and EGR, but also outputs a maximum power of 105kW, fully guaranteeing the power performance of the HOWO heavy duty concrete mixer truck.

ความสามารถในการทำงาน:
10CBM
ขนาด (มม.):
9300×2500×3500 mm
ระยะฐานล้อ (มม.):
4500+1370 mm
กำลังเครื่องยนต์:
340HP
ชนิดเครื่องยนต์:
WP10.340E22
เพลาขับ:
6x4, LHD
กล่องเกียร์:
HW 10 shift
หมายเหตุ:
6X6, RHD drive type avaiable

สอบถามรายละเอียดเพิ่มเติมตอนนี้

เดอะ HOWO heavy concrete mixer truck is that integrates advanced technology and practical performance, fully demonstrating the excellence of C EEC trucks group in the field of heavy duty commercial vehicles. T he vehicle is equipped with an engine model WP10.340E22 , which is a 9.726 L inline 6 cylinder diesel engine. It adopts advanced technologies such as high pressure common rail, turbocharged intercooler and EGR, but also outputs a maximum power of 105kW, fully guaranteeing the power performance of the HOWO heavy duty concrete mixer truck.

The rated speed of 2 2 00rpm ensures the stable operation of the engine during mixing operations. The mixing dynamic volume of 10 CBM meets the needs of most small and medium-sized projects, while the water tank volume of 1 cubic meter provides sufficient water source guarantee for concrete mixing.The cab configuration is also quite rich, including electric door and window central lock, air conditioning, cab electric lift, multi-function steering wheel, driver airbag seat, which greatly improves driving comfort and safety.

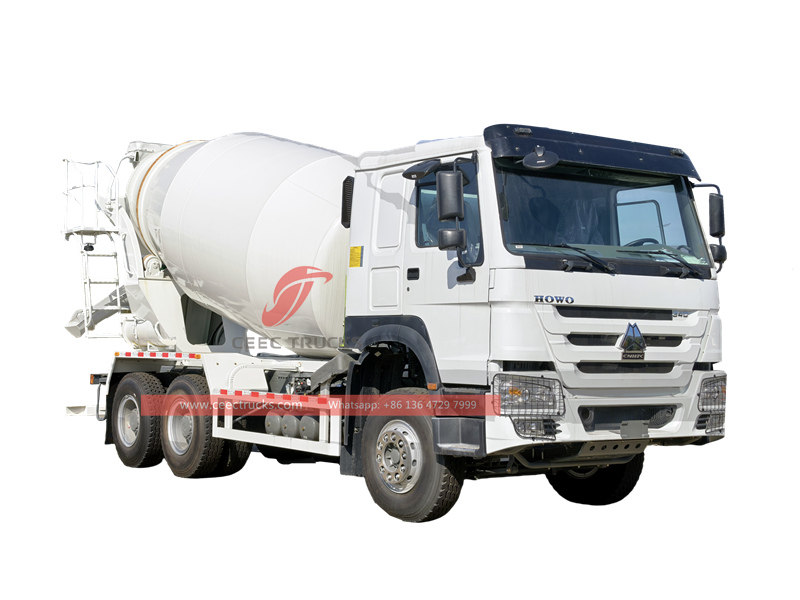

Howo heavy concrete mixer truck

* Howo 6x4 concrete mixer truck

Howo 10wheeler mixer tank truck*

-----------------------------------------------------------------

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

✦ Product Introduction of Howo Boom Truck « « «

Manufacturer: CEEC Trucks Group

Performance Advantages

1. Efficient Power and Transmission Matching: A Sinotruk 180-horsepower engine paired with a 10-speed transmission delivers high compatibility and efficient power transmission.

2. Scientific Tank Design: Q355 manganese steel with a double-logarithmic spiral curve ensures concrete homogeneity, minimizes residue, and reduces material waste.

3. Convenient and Safe Operation: Linked operation reduces operator workload; pneumatic water supply and a large capacity water tank ensure efficient cleaning.

4. Manageable Maintenance Costs: A modular hydraulic system and domestically produced radiator reduce the difficulty and expense of subsequent repairs.

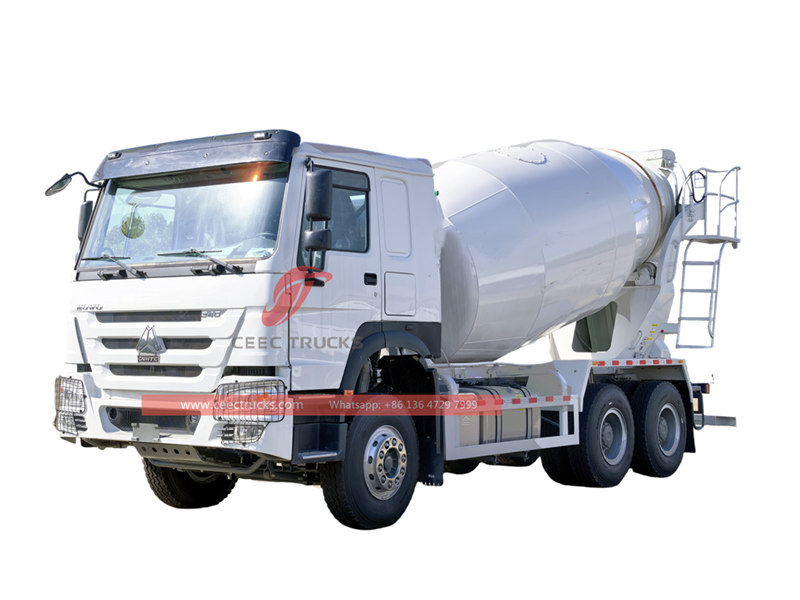

HOWO heavy concrete mixer truck

✦ Product Parameter of Howo Concrete Mixer Truck « « «

HOWO 10CBM concrete mixer truck Basic information
Driving form	6X4	Body size	9300×2500×3500 mm
Front suspension/rear suspension	1.13/1.93 m	Wheelbase	4500+1370 mm
Payload	13 tons	GVW	25000 kg
Maximum speed	95 km/h
Remarks	Imported brand speed reducer, imported brand hydraulic system, tank body adopts Q355 high strength tank steel plate, electric door and window central locking, air conditioning, cab electric lifting, multi-function steering wheel, driver's airbag seat, four-way image, B version smart pass,
Engine parameters
Engine model	WP10.340E22	Fuel type	diesel
Number of cylinders	6 cylinders	Maximum output power	105kW
Maximum horsepower	340HP	Displacement	9.726L
Emission standard	Euro 3	Engine form	In line 4 cylinder, water cooled, 6 stroke, high pressure common rail, supercharged intercooling, EGR
Upper loading parameter
Vehicle NO.	CEEC5253SNC	Vehicle type	transit mixing truck
Dynamic volume of stirring	10 m³	Water tank volume	1 CBM
Cab parameters
Cab	One row cab, forward control type, all welded steel cab of tilt type, rear mechanical cab suspension, adjustable driver seat
Gearbox parameters
Gearbox model	HW19710	Number of gears:	Manual 10 forward & 1 Reverse
Chassis parameters
Chassis brand	Howo	Chassis model:	Heavy duty
Number of tires	6	Tyre size:	12.00 R20

✦ High load capacity and passability of Howo mixer Truck « « «

♦ The Howo heavy 10CBM mixer truck has a 6x4 drive system , rear double-axle drive + front axle steering .

♦ R easonable axle load distribution, strong load capacity, usually 28 tons, suitable for heavy load transportation .

♦ E xcellent ability to escape from complex road conditions such as mud and ramps.

♦ It adopts high-strength steel beams with strong torsion resistance, and is equipped with multi-leaf spring suspension, with high load-bearing stability.

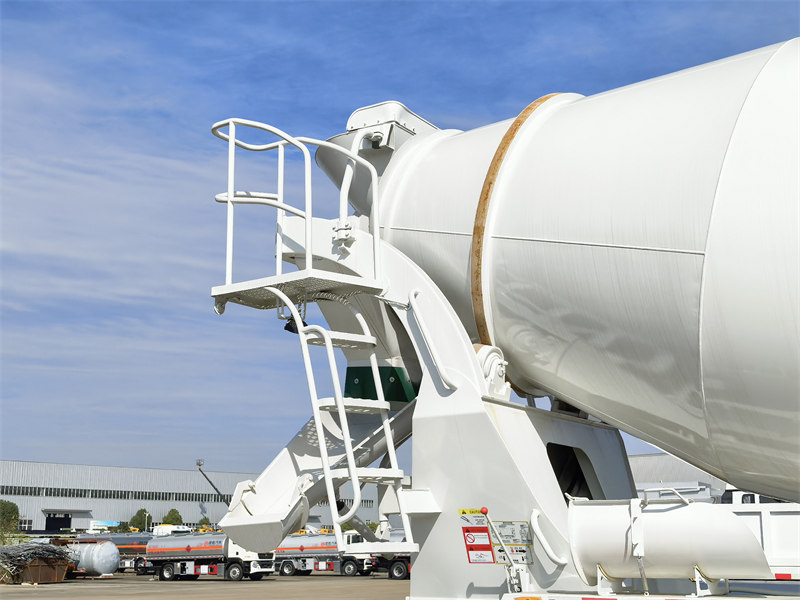

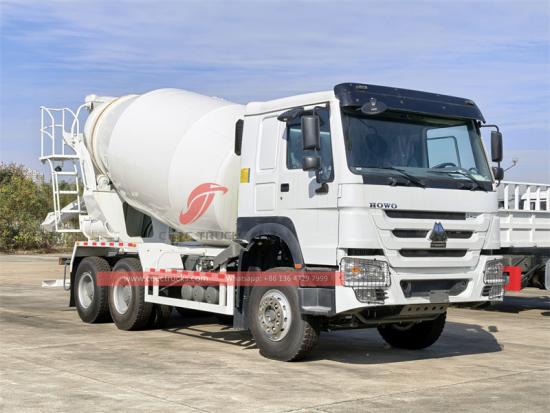

Howo heavy 6x4 mixer truck

♦ Equipped with Weichai technology engine (such as WP10/WP12) + Sinotruk HW series gearbox + wheel reduction bridge .

♦ L ow speed and high torque characteristics are outstanding, suitable for heavy load climbing and continuous operation.

♦ The Weichai engine has a life of more than 800,000 kilometers .

♦ K ey parts (such as hydraulic pumps and crane slewing mechanisms) are top brands , with a low failure rate.

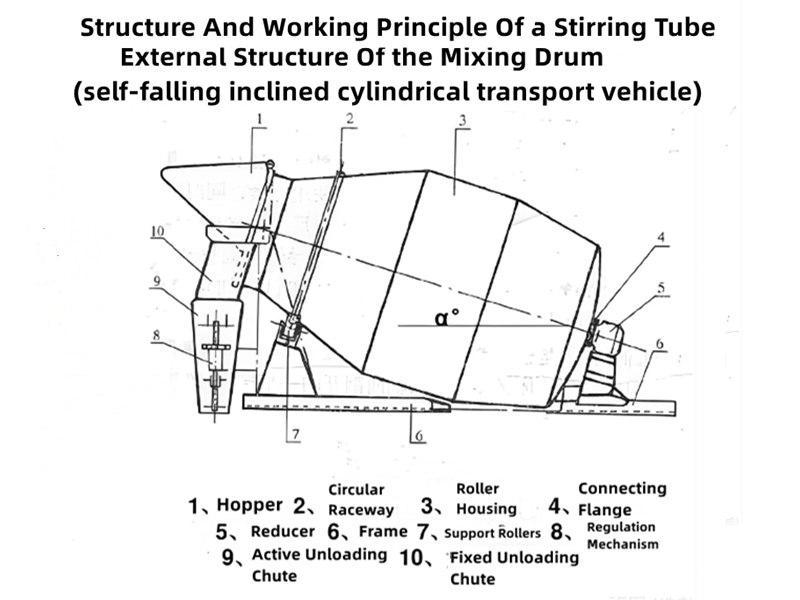

✦ Main Advantage Of Upper Mixing System « « «

Howo mixer tank truck

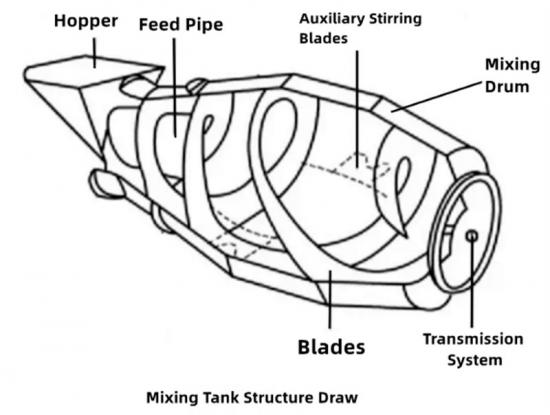

1. 10 CBM Q355 manganese steel tank:

▶ Tank thickness: 5 mm, head thickness: 6mm, high strength and wear resistance, suitable for high-intensity mixing operations.

▶ Double logarithmic spiral curve design optimizes the concrete flow path, reduces segregation, and reduces residue.

2. Core Components

▶ Reducer: Keyi

▶ Hydraulic Pump and Motor: Italy Interpap brand. Highly efficient and reliable, with stable power transmission, ensuring continuous tank rotation.

▶ Radiator: Optimizes heat dissipation, prevents hydraulic system overheating, and extends equipment life.

▶ Water Supply System: 400L water tank, pneumatic water supply.

▶ Air Control Box: Integrated with manual valves, solenoid valves, and pressure switches, it achieves automated control and enhances system stability.

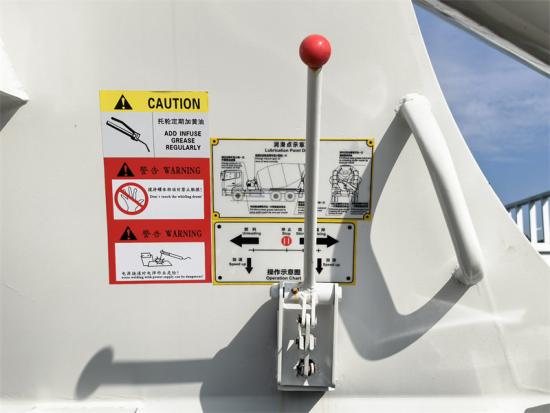

3. Control System

▶ Dual rear joysticks: Support left and right side and cab operation, allowing the operator to easily control tank rotation, discharging, and other actions from different positions.

▶ Linked control design: Streamlines the operating process, improves efficiency, and reduces the risk of misoperation.

✦ Application of Howo light mixer tank truck « « «

The Howo light mixer tank truck is suitable for flexible operation scenarios with high frequency and small batches, such as rural self-built houses, sporadic municipal projects, and "last mile" concrete delivery. It is an important supplement to the heavy-duty mixer truck system.

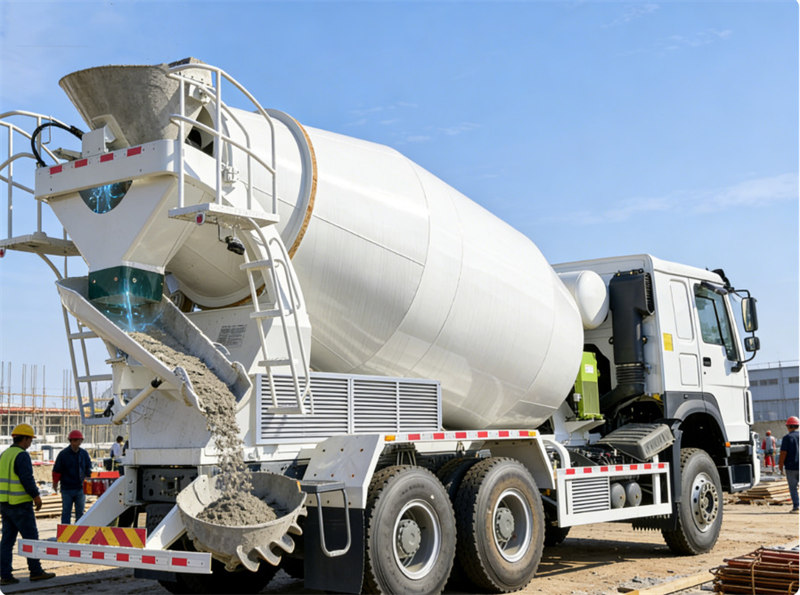

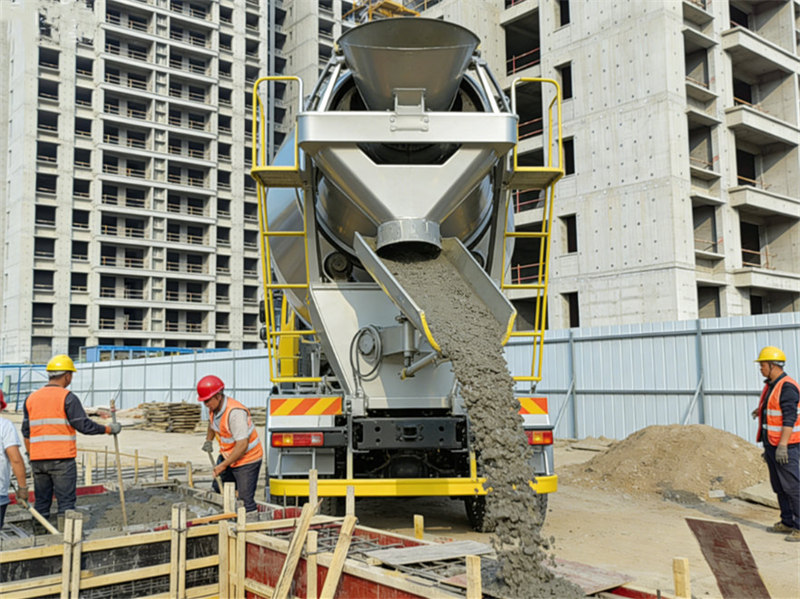

Howo mixer tanker truck

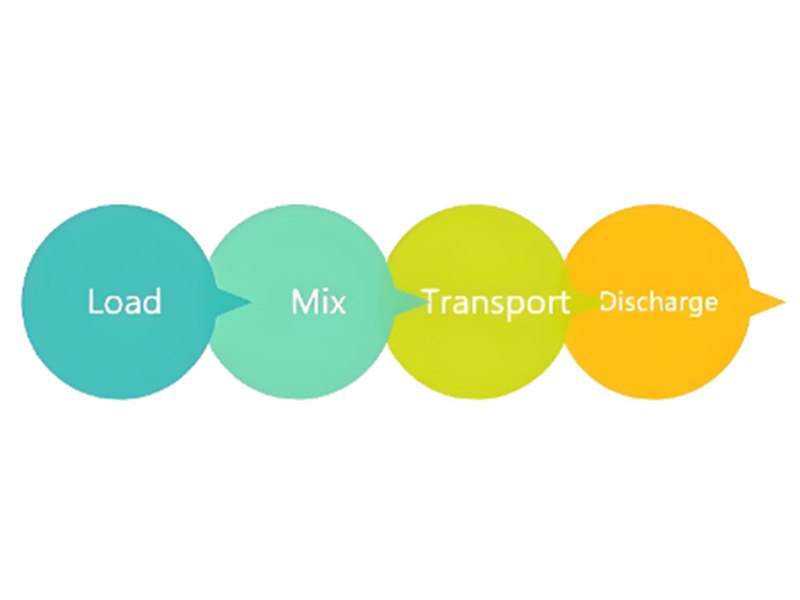

✦ Working Principle of Howo Heavy Mixer Tank Truck « « «

The core operating principle of a truck mixer is power transmission and drum mixing.

Howo 10CBM mixer truck

▶ Loading: The truck is loaded with the necessary materials, including cement,water, and aggregates such as sand or gravel. The materials are loaded into the drum through a hatch located on the top of the drum.

▶ Mixing: The drum of the truck is rotated continuously during transportation, which ensures that the concrete remains in a liquid state and is uniformly mixed. The rotation of the drum is powered by a hydraulic system that is typically located on the front of the truck.

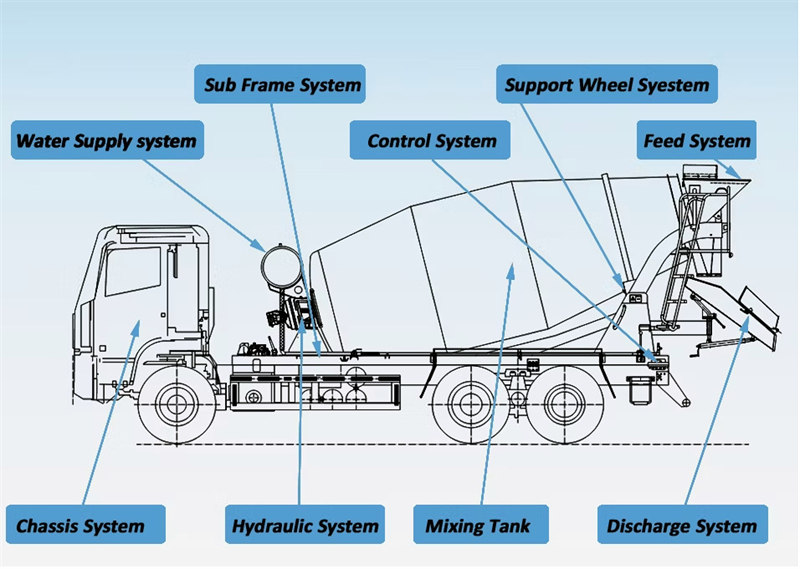

Howo heavy duty mixer tank truck

▶ Transporting: Once the concrete is mixed, the truck transports it to the construction site. The drum continues to rotate during transportation to prevent the concrete from setting.

▶ Discharging: When the truck arrives at the construction site, the concrete is discharged from the drum by rotating the drum in the opposite direction.The concrete is discharged through a chute located at the rear of the truck and can be directed to the desired location.

Products--100% Customized Level One!

Transportation--100% Safety, Convenience, Efficient!

Services--7days + 24hours Safetify Service!

1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasionalble price

3.we can offer your a reliable after-sell service

4.we have skilled professinal design team

5. promptly delivery. any order is welcome.

CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.

★ Euro 3 type, Weichai engine, fuel consumption save 20%

★ HW Manual 10 shift mechanical transmission gearbox

★ 12 months fast moving spare parts for FREE

★ Authorized Howo service truck 20ton crane exporter

★ Training service for Howo truck mounted crane.

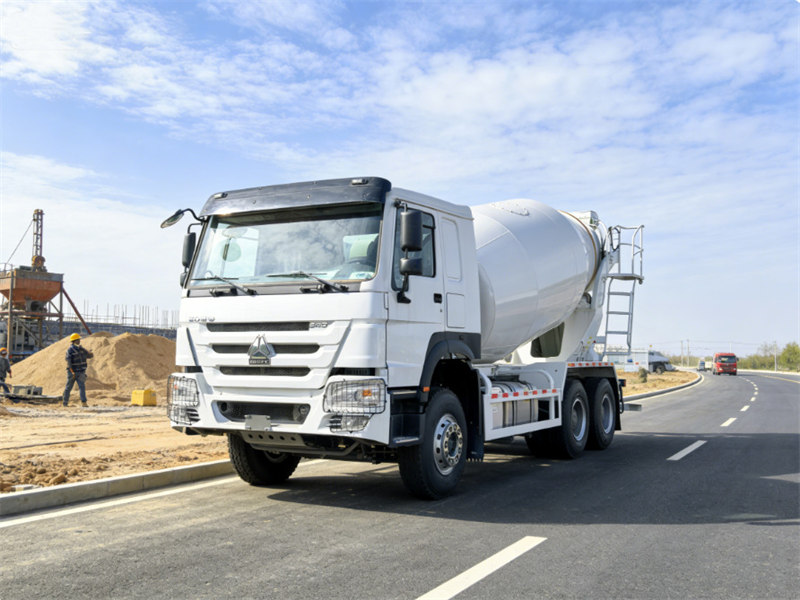

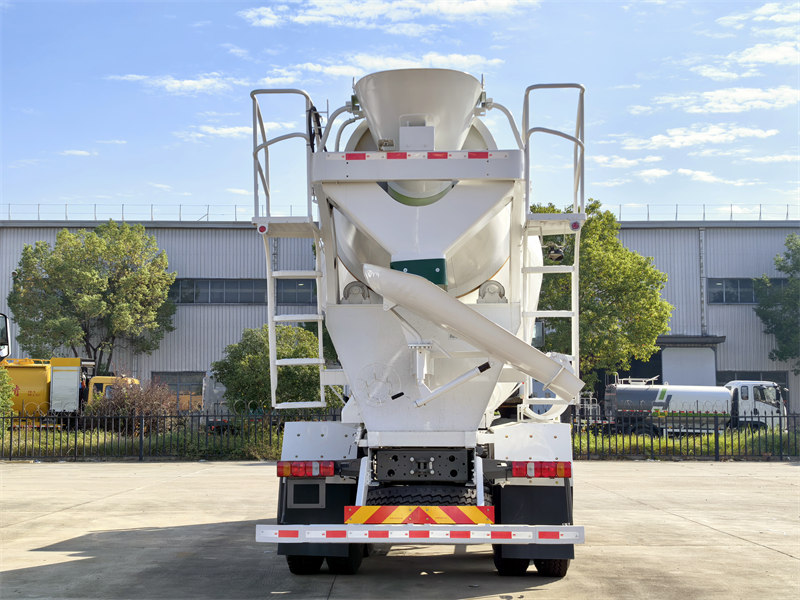

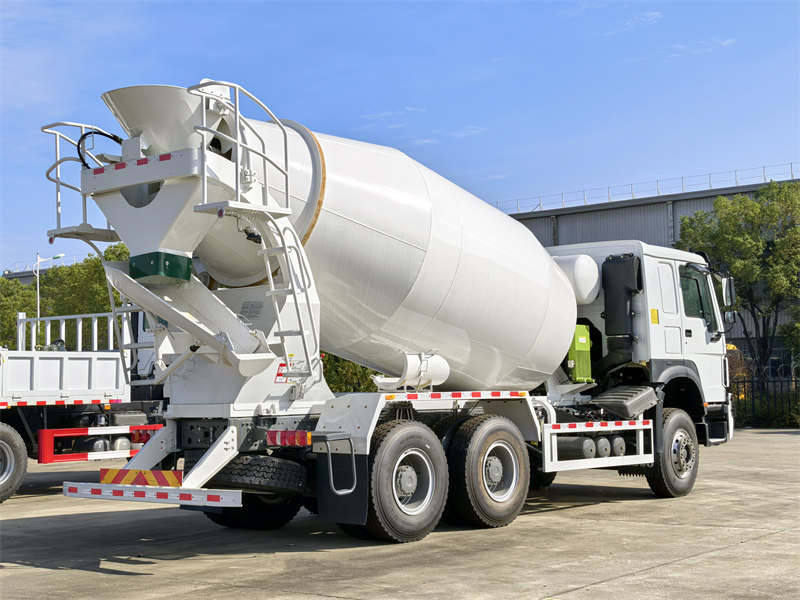

Howo 6x4 mixer tank truck
